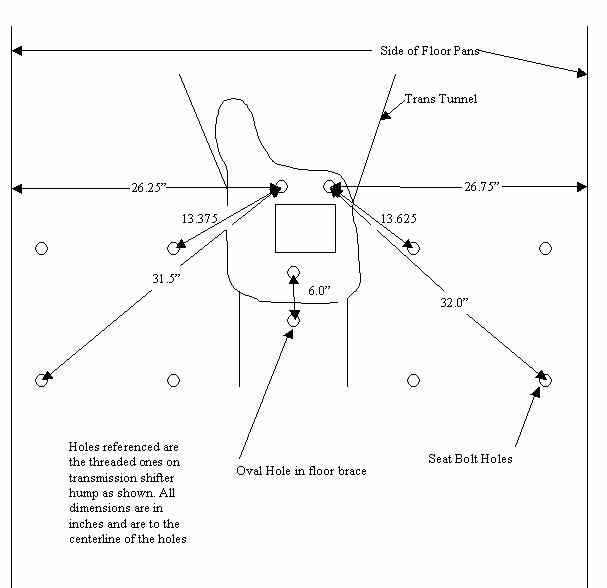

template
Submitted by: Scott Tanner

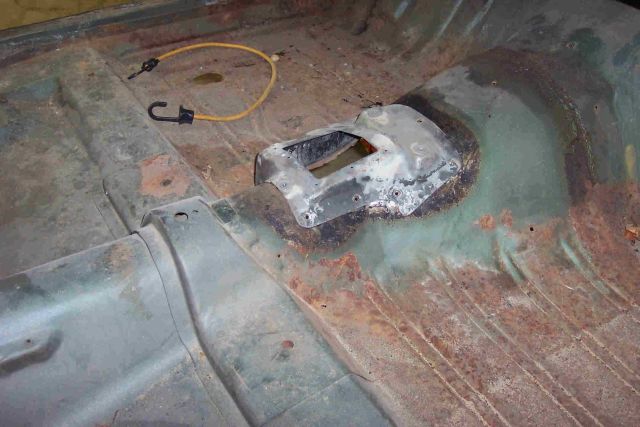

Hump in place:

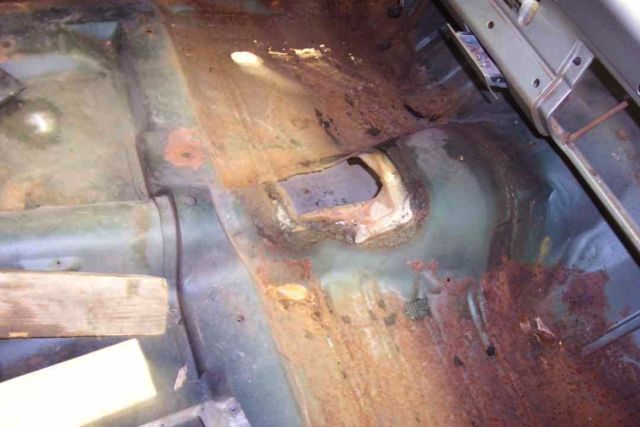

Hole in floor:

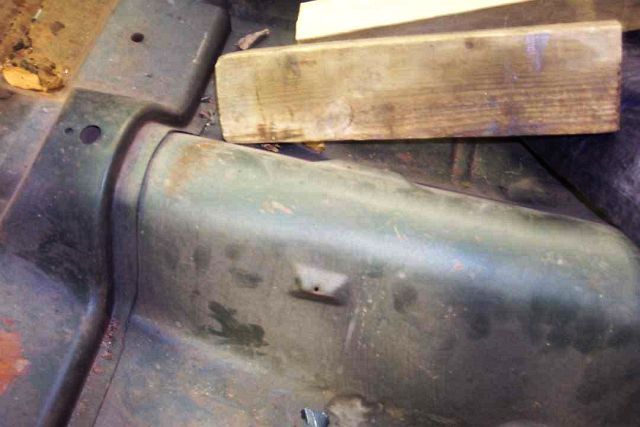

Bucket seat hump brace and rear console mounting ears:

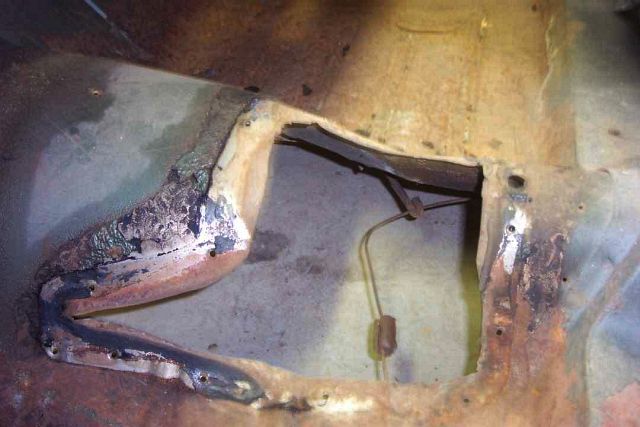

Hole in floor, factory cut with air chisel/panel cutter ~1-1/2 to 2 from edge of hump
all of the way around.. this hole was cut freehand at the factory. Suggested that once
hump is located, trace out around onto floorpan, trace out holes, and measure
in 1-1/2 to 2 all the way around to locate the cut line.
